Fig. 2

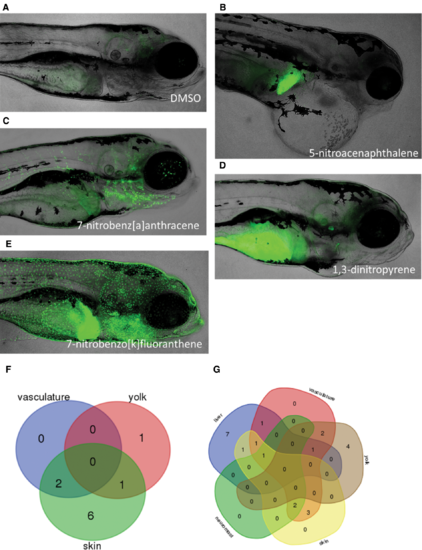

Selected representative images of cyp1a/GPF expression in Tg(cyp1a:nls-egfp) transgenic zebrafish following chemical exposures. Examples of cyp1a/GFP expression patterns in the DMSO-exposed animals (A), liver (B), vasculature (C), yolk sac (D) and skin, neuromasts and liver (E) following exposure to indicated NPAHs. Expression patterns observed at 48 hpf (F) and 120 hpf (G), showing unique and overlapping cyp1a/GFP expression patterns for all compounds where expression in one or more tissues was observed. All results are summarized in Table 3. |
