Fig. 4

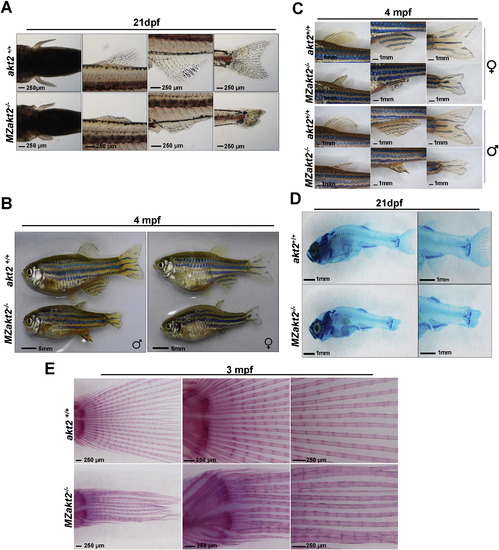

Akt2 mutants exhibit delayed fin generation. (A) At 21 dpf, MZakt2−/− mutants displayed shorter protrusions, aberrant extension, and reduced number of segments of fin rays in pectoral fin, dorsal fin, canal fin, and caudal fin compared with their wildtype siblings. (B–C) At adult stage (4 months), MZakt2−/− mutants displayed delayed fin generation. (D) At 21 dpf, the joint between the muscle and dorsal fin or anal fin, and the connection between the caudal fin and the spine were normal in MZakt2−/− mutants compared with their wildtype siblings, as revealed by Alcian blue staining. (E) Alizarin red-staining of caudal fin from wild-type and homozygous adult zebrafish. Scale bars are shown in the pictures.
