Fig. S2

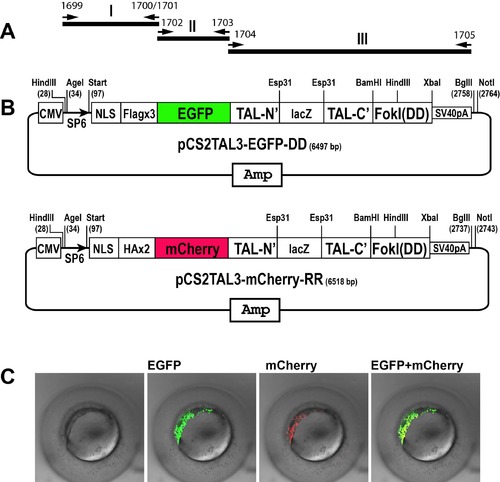

Schematic representation of the EGFP and mCherry-tagged TALEN plasmids. A) The assembling strategy to insert EGFP and mCherry genes into the TALEN backbone plasmids. B) Structure of pCS2TAL3-EGFP-DD and pCS2TAL3- mCherry-RR. C). Embryos injected with in vitro transcribed mRNA of cyp19a1a-pCS2TAL3- EGFP-DD and cyp19a1a-pCS2TAL3-mCherry-RR. Both TALE proteins were translated and the yellow signal indicates co-translation of the proteins in the same cells. |
