Fig. 6

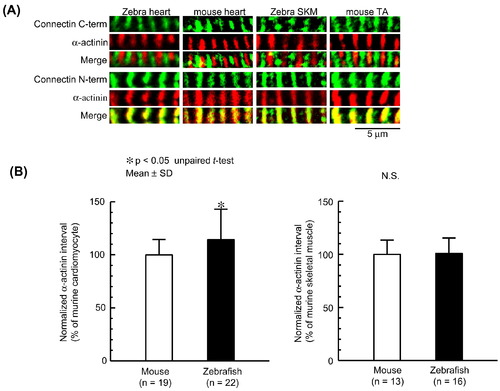

Comparison of the sarcomere lengths in heart and skeletal muscle between mouse and zebrafish. (A) Immunostaining of zebrafish heart and skeletal muscle using connectin N-terminus or C-terminus and α-actinin antibodies. Mouse heart and tibialis anterior muscle (TA) were also stained as controls. The localizations of N-terminus connectin at the Z-line and C-terminus connectin at the M-line are conserved in heart and skeletal muscle of zebrafish and mouse. Green, connectin. Red, α-actinin. SKM, skeletal muscle. (B) The sarcomere lengths of zebrafish heart and skeletal muscle, which are normalized to those of mouse heart and tibialis anterior muscle, respectively. The sarcomeres of zebrafish heart are longer than those of mouse heart, and those of zebrafish skeletal muscle are similar to those of mouse tibialis anterior muscle. Asterisk indicates p < 0.05 in t-test.
