Fig. 5

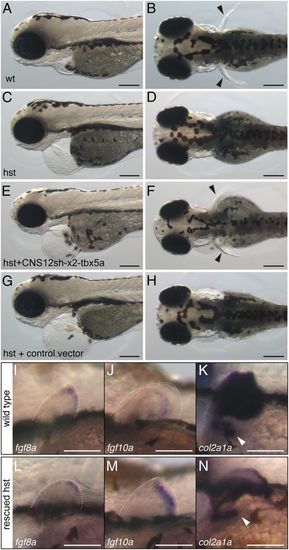

tbx5a driven by CNS12sh rescues pectoral fin formation in hst. Wild-type (A and B) and hst (CH) at 3 dpf. Lateral views (A, C, E, and G) and dorsal views (B, D, F, and H). Black arrowheads indicate pectoral fins. fgf8a (I and L), fgf10a (J and M), and col2a1a (K and N) in situ hybridization in the wild-type (I-K) and rescued hst (LN) at 3 dpf. Dotted lines outline the pectoral fin and white arrowheads indicate the scapulocoracoid. (Scale bars: A-H, 200 µm; I-N, 100 µm.)
