Fig. 1
- ID
- ZDB-FIG-160927-7
- Publication
- Saraceni et al., 2016 - Establishment of Infection Models in Zebrafish Larvae (Danio rerio) to Study the Pathogenesis of Aeromonas hydrophila
- Other Figures
- All Figure Page
- Back to All Figure Page

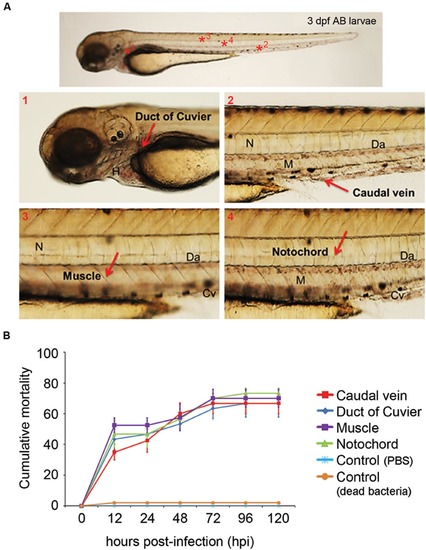

(A) Anatomical distribution of the selected sites for microinjection. The duct of Cuvier (A1) and the caudal vein (A2) were selected to establish systemic infections. Injection in the muscle (A3) or notochord (A4) induced a local infection. Cv, caudal vein; Da, dorsal aorta; M, muscle; N, notochord. (B) Evolution of cumulative mortality in larvae infected with 1 nL of an A. hydrophila solution (3200 CFU/nL). The graph shows a representative result of the three independent experiments conducted. Forty larvae were injected in each anatomical site. No significant differences were observed between the mortality registered using the different injection sites throughout the experiment. |
