Fig. S8

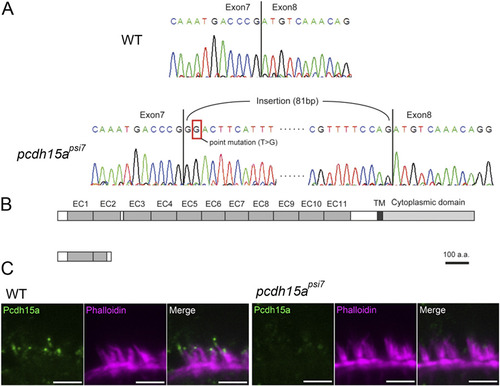

Immunolabeling of Pcdh15a in wild-type siblings and pcdh15a^psi7 mutants. (A) Sequence of the psi7 allele, which encodes splice site mutation causing a frameshift following exon 7. (B) The predicted product is a short N-terminal fragment of Pcdh15a. (C) Immunolabeling with a monoclonal antibody against Pcdh15a. Actin filaments were labeled with rhodamine?phalloidin. (Right) Note the splaying of stereocilia, which is typical for mutants expressing strong alleles of pcdh15a (1). (Scale bar: 5 μm.)

Expression Data

Gene:	pcdh15a
Antibody:	Ab2-pcdh15a
Fish:	WT pcdh15a^psi7/psi7
Anatomical Terms:	hair cell stereocilium tip lateral crista hair cell
Stage:	Day 4

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	pcdh15a^psi7/psi7
Observed In:	hair cell stereocilium bundle inner ear receptor cell stereocilium organization
Stage:	Day 4

Phenotype Detail
