Fig. S2

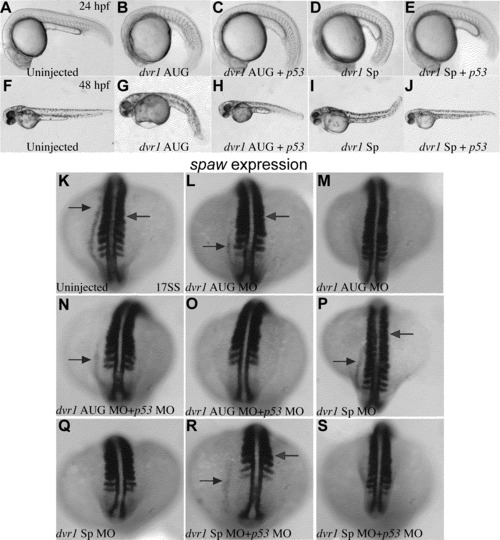

Dvr1 LR phenotype is not rescued by p53 morpholino. (A)–(E) At 24, Dvr1 AUG and Sp morphants (B) and (C) show a head necrosis phenotype that can be rescued by coinjection of p53 morpholino suggesting that this phenotype is nonspecific. (F)–(J) At 48 hpf nonspecific morpholino phenotypes in both Dvr1 AUG and Sp morphants (G) and (I) can also be rescued by p53 morpholino co-injection. (K)–(S) The reduced or absent expression of the left-sided LPM marker, spaw, in Dvr1 AUG and Sp morphants is a Dvr1 morpholino specific phenotype and cannot be rescued by co-injection with p53 morpholino co-injection. |
