Fig. 4

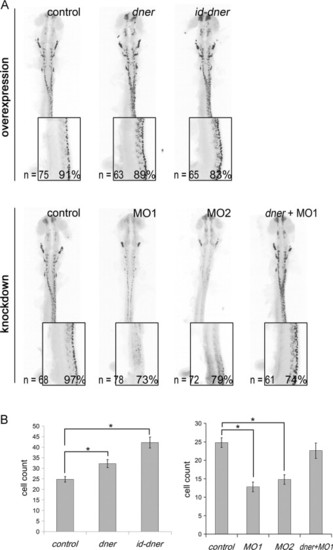

Dner-induced neuronal differentiation and dner morpholinos are sufficient to inhibit differentiation. Embryos were analyzed by immunohistochemistry using anti-Hu antibody at 24 hpf. The black-and-white fluorescent signals were inverted using negative film for a better presentation. (A) Injections with either dner or id-dner increased the frequency of HuC/D-positive cells. Injections with either morpholino were sufficient to decrease the HuC/D signals. This reduction could be rescued by co-injection with dner cRNA. The insets in each panels show lateral view enlargements of the 3-somite to 9-somite levels of the spinal cord. HuC/D-positive cells were counted in this region and quantified in (B). ^N, p<0.05.

Expression Data

Antibody:	Ab1-elavl
Fish:	TU TU + MO1-dner TU + MO2-dner
Knockdown Reagents:	MO1-dner MO2-dner
Anatomical Term:	neuron
Stage:	Prim-5

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	TU + MO1-dner TU + MO2-dner
Knockdown Reagents:	MO1-dner MO2-dner
Observed In:	neurogenesis
Stage:	Prim-5

Phenotype Detail
