FIGURE

Fig. 7

ID

ZDB-FIG-120828-5

Publication

Formella et al., 2012 - Transient Knockdown of Tyrosine Hydroxylase during Development Has Persistent Effects on Behaviour in Adult Zebrafish (Danio rerio)

Other Figures

All Figure Page

Back to All Figure Page

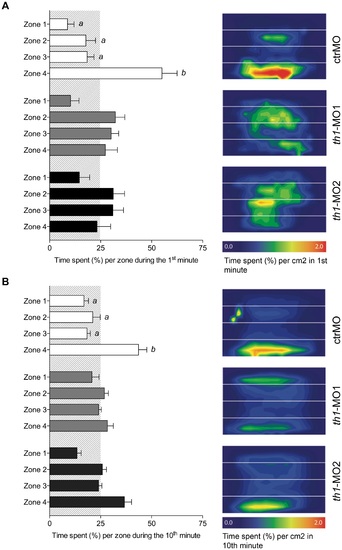

Fig. 7

Adult morphants have impaired diving behaviour in a novel environment.

Early disruptions of th1 expression have long-lasting effects on the vertical diving behaviour in the novel diving tank task. Diving activity was assessed as the percentage time that was spent in each vertical zone (1-4) during a 10-minute trial. (A) shows behaviour that was displayed during the 1^st minute, and (B) shows behaviour during the 10^th minute. Letters indicate statistically significant differences between groups (one-way ANOVA followed by Bonferroni′s test), p≤0.05. Corresponding heat maps are displayed to reflect fish location in each zone.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	TL + MO1-th TL + MO2-th
Knockdown Reagents:	MO1-th MO2-th
Observed In:	behavioral fear response locomotory behavior
Stage:	Adult

Phenotype Detail
