Fig. 11

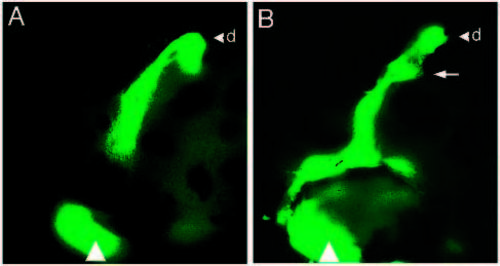

Retinotectal projection defect in nev mutants. Retinotectal projections of dye-labeled nasodorsal axons in wild-type (A) and nev (B) larvae at 120 hours. In wild type the retinotectal projections terminate in the posteriodorsal optic tectum (small arrowhead in A), while in nev mutants (B) they terminate on both posteriodorsal (small arrowhead) and posterioventral positions (arrow). The large arrowheads in A and B indicate the position of the dye injection. d, dorsal tectum. |
