FIGURE

Fig. 3

ID

ZDB-FIG-111223-12

Publication

Blum et al., 2012 - Retinoic acid signaling controls the formation, proliferation and survival of the blastema during adult zebrafish fin regeneration

Other Figures

All Figure Page

Back to All Figure Page

Fig. 3

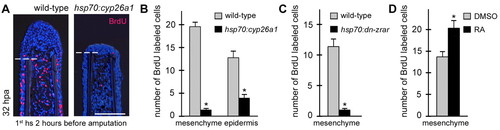

Induction of cell proliferation in the fin stump requires RA signaling. (A-C) Inhibition of RA signaling in hsp70:cyp26a1 and hsp70:dn-zrar fish results in a significant decrease in proliferating cells in the fin stump (daily heat shocks, commencing 2 hours before amputation). (A) Longitudinal sections stained for BrdU and with DAPI demonstrate a near absence of BrdU-positive cells in hsp70:cyp26a1 fins at 32 hpa. (B,C) Quantification of BrdU-labeled cells within a defined area at 32 hpa in hsp70:cyp26a1 (wild type, n=39 sections; hsp70:cyp26a1, n=44) (B) or hsp70:dn-zrar stumps (wild type, n=20; hsp70:dn-zrar, n=31) (C). (D) Exogenous RA promotes mesenchymal proliferation in the stump [RA intraperitoneal injection (IP) every 12 hours, first IP at 0 hpa]. Quantification of BrdU-labeled cells at 32 hpa in RA-treated stumps (DMSO vehicle, n=16; RA, n=18). Error bars, s.e.m. ^*, P<0.0001 in B,C; ^*, P<0.005 in D. Dashed lines indicate the amputation plane. hs, heat shock. Scale bar: 100 μm.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	kn1Tg/+ pd18Tg/+
Condition:	heat shock, physical alteration: anatomical structure
Observed In:	cell population proliferation
Stage:	Adult

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Development
