Fig. 1

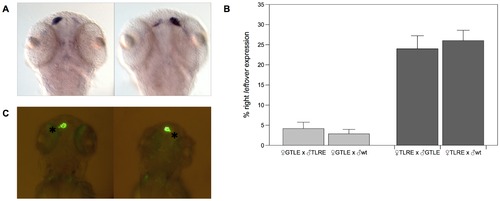

Zebrafish brain asymmetries are reversed in embryos from TLRE line.

A, in situ hybridization on 3 dpf embryos showing the expression of the leftover (lov) gene, a marker of habenular L-R asymmetries. Normal lov expression is stronger in the left habenular nucleus, while in larvae with reversed asymmetries lov expression is stronger in the right habenula. B, frequencies of embryos with reversed (right) lov expression in embryos derived from GTLE females mated TLRE or wt males males and from TLRE females mated to GTLE or wt males. C, in vivo detection of the position of the parapineal organ (asterisk) in transgenic tg(foxD3:GFP)zf15 zebrafish. GFP expressed in the pineal complex allows discriminating between left parapineal (LEFT PPO) and right parapineal (RIGHT PPO) fish.

Expression Data

Genes:	GFP kctd12.1
Fish:	WT zf15Tg
Anatomical Terms:	habenula pineal complex
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
