FIGURE
Fig. 8
- ID
- ZDB-FIG-111006-5
- Publication
- Lin et al., 2011 - Reverse Effect of Mammalian Hypocalcemic Cortisol in Fish: Cortisol Stimulates Ca Uptake via Glucocorticoid Receptor-Mediated Vitamin D(3) Metabolism
- Other Figures
- All Figure Page
- Back to All Figure Page
Fig. 8

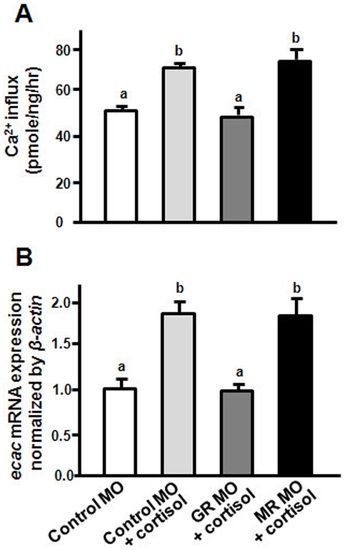

Effects of MR MO and GR MO on zebrafish embryos with cortisol treatment. Ca2+ influx (A) and ecac mRNA expression (B) were analyzed in 3-dpf zebrafish embryos injected with GR MO or MR MO with cortisol treatment. mRNA expressions were analyzed by qPCR, and values were normalized to β-actin. abcIndicate a significant difference (p<0.05) using Tukey′s multiple-comparison test following one-way ANOVA. Values are the mean ± SEM. (n = 6~8). |
Expression Data
| Gene: | |
|---|---|
| Fish: | |
| Condition: | |
| Knockdown Reagents: | |
| Anatomical Term: | |
| Stage: | Protruding-mouth |
Expression Detail
Antibody Labeling
Phenotype Data
Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ PLoS One
