Fig. 3

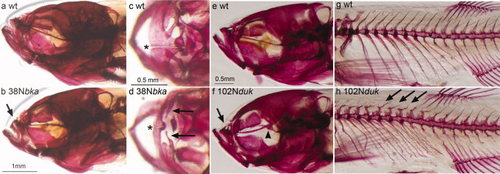

Adult craniofacial phenotypes of the 38N belka (bka) and 102N dushka (duk) mutants. (a–h) Alizarin red (AR)-stained adult zebrafish. (a,b,e,f) Lateral views of heads of wt (a,e), and 38N bka (b) and 102N duk (f) mutant siblings. The arrows in (b) and (f) point to reduced upper jaw in both mutants. The arrowhead in (f) points to bent parasphenoid in 102N duk mutant. (c,d) Dorsal view of upper jaw in wt (c) and 38N bka mutant (d) siblings. The asterisks indicate patent suture in wt maxilla (c), and fused suture in 38N bka mutant maxilla (d). Arrows in (d) indicate small maxillary bones in 38N bka mutants. (g,h) Lateral view of axial skeleton in wt (g) and 102N duk mutant (h) siblings. Arrows indicate small and misshapen neural arch cartilages in 102N duk mutants.

Expression Data

Expression Detail

Antibody Labeling

Phenotype Data

Fish:	bka^tft38/tft38 (AB) duk^{tft102/tft102} (AB)
Observed In:	caudal fin skeleton kinethmoid bone maxilla neural arch palatoquadrate arch parasphenoid
Stage:	Days 45-89
