Fig. 3

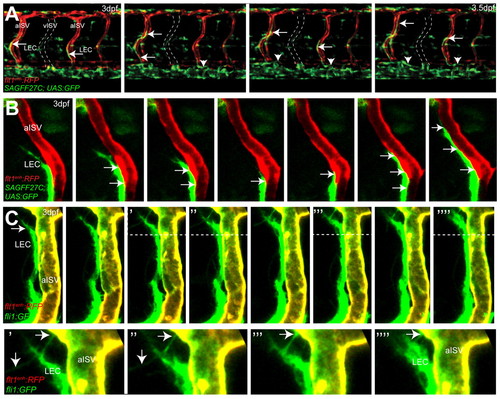

Migration of lymphatic precursors along intersegmental arteries. (A) Still images of flt1^enh:RFP;SAGFF27C;UAS:GFP triple transgenic embryos reveal migration of SAGFF27C;UAS:GFP⁺ LECs (arrows) along flt1^enh:RFP⁺ arteries and establishing the TD (arrowheads) in the trunk. The position of a vISV is indicated by broken lines. (B) Still images of migrating SAGFF27C;UAS:GFP⁺ LECs suggest direct contact (arrows) between the aISV and the LEC. (C) Still images of migrating fli1a:GFP⁺ LECs and filopodia formation (indicated by arrows) at the leading edge along the surface of a flt1^enh:RFP⁺; fli1a:GFP⁺ artery at 3 dpf. Areas above the broken lines are shown at higher magnification in the bottom row.

Expression Data

Genes:	EGFP RFP
Fish:	hu5333Tg; y1Tg map3k22^{nksagff27cGt/+}; hu5333Tg; nkuasgfp1aTg
Anatomical Terms:	artery intersegmental vessel lymph vessel endothelium lymphatic system endothelial cell thoracic duct
Stage:	Protruding-mouth

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail
