FIGURE

Fig. 2

ID

ZDB-FIG-091215-8

Publication

Tan et al., 2009 - Regulation of membrane progestin receptors in the zebrafish ovary by gonadotropin, activin, TGF-beta and BMP-15

Other Figures

All Figure Page

Back to All Figure Page

Fig. 2

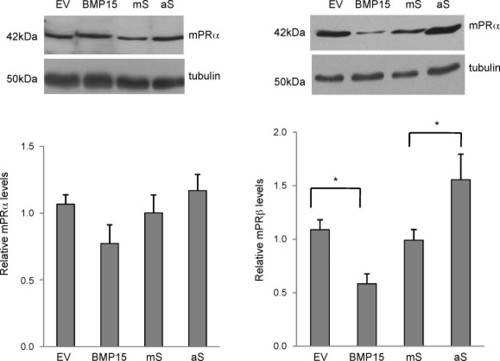

BMP-15 inhibits mPRβ, but not mPRα expression. To overexpress BMP-15, oocytes were microinjected with plasmid DNA carrying the coding sequence of zebrafish BMP-15 (1 ng/follicle) or equal amount of the empty vector as the negative control. To knockdown BMP-15, oocytes were injected with an antisense oligonucleotide (0.5 ng/follicle) targeting the translation initiation site of BMP-15. A missense oligonucleotide was used as the negative control. Proteins were extracted at 18 h after microinjection and expression of the mPRα and mPRβ was detected by Western blot analysis using mPRα and mPRβ antibodies. Equal loading was confirmed by Western blotting probed with an α-tubulin antibody. Data represent mean ± S.E.M. of five experiments.*p < 0.05. EV, empty vector control. aS, antisense oligonucleotides; mS, missense oligonucleotides.

Expression Data

Genes:	paqr7b paqr8
Antibodies:	Ab1-paqr7b Ab1-paqr8
Fish:	WT WT + MO1-bmp15
Knockdown Reagent:	MO1-bmp15
Anatomical Term:	oocyte stage V
Stage:	Days 45-89

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Molecular and Cellular Endocrinology, 312(1-2), Tan, Q., Zagrodny, A., Bernaudo, S., and Peng, C., Regulation of membrane progestin receptors in the zebrafish ovary by gonadotropin, activin, TGF-beta and BMP-15, 72-79, Copyright (2009) with permission from Elsevier. Full text @ Mol. Cell. Endocrinol.
