FIGURE

Fig. 2

ID

ZDB-FIG-090408-79

Publication

Ackerman et al., 2009 - Cloning and spatiotemporal expression of zebrafish neuronal nicotinic acetylcholine receptor alpha 6 and alpha 4 subunit RNAs

Other Figures

All Figure Page

Back to All Figure Page

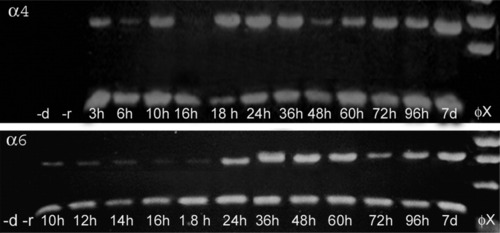

Fig. 2

Expression of chrna6 and chrna4 RNA in zebrafish. Reverse transcription polymerase chain reaction (RT-PCR) was used to determine when chrna6 and chrna4 nAChR subunit RNAs were expressed in embryos and larvae. Three micrograms of RNA from each age zebrafish (h, hpf; d, dpf) were reverse-transcribed and amplified using subunit-specific primers. The &beta-actin was also amplified for each age. As controls, PCR was performed using zebrafish RNA without reverse transcription (-r) or without cDNA (-d). The size of each PCR product was consistent with the size predicted by the cDNA sequences. The Φx 174 HaeIII DNA (Φχ) was used as a size marker.

Expression Data

Genes:	chrna4b chrna6
Fish:	WT
Anatomical Term:	whole organism
Stage Range:	1k-cell to Days 7-13

Expression Detail

Antibody Labeling

Phenotype Data

Phenotype Detail

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Dev. Dyn.
