Fig. S4

stat5.1 Morphants Show Long Muscle Fibers Extending through Somites

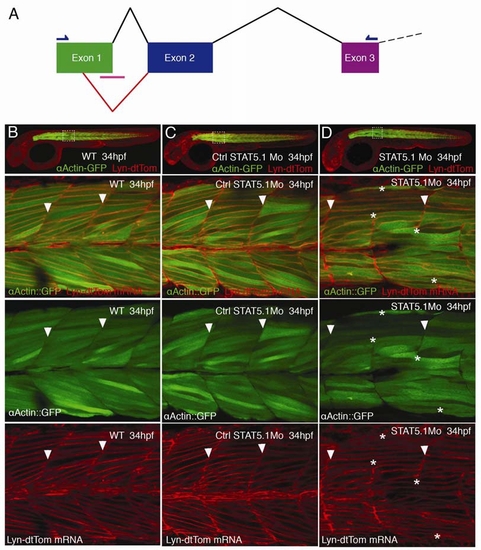

(A) Schematic representation of the stat5.1 gene showing the first three exons. The black line indicates normal splicing, while the red line highlights the abnormal splicing induced by the splice morpholino (pink).
(B?D) (B) Overview of WT embryo, (C) control morpholino injected embryo and (D) stat5.1 morphant. Muscles are labeled in green (αActin::GFP) and injected with lyndtTomato mRNA (red) at 34hpf. Arrowheads highlight the length of single muscle fibers, asterisks indicate gaps in somite boundaries.
