Fig. 3
- ID
- ZDB-FIG-081003-22
- Publication
- Yoshida et al., 2008 - Zebrafish orthologue of mental retardation protein IL1RAPL1 regulates presynaptic differentiation
- Other Figures
- All Figure Page
- Back to All Figure Page

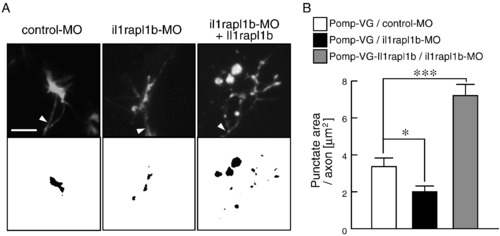

Effect of il1rapl1b-MO on the VAMP2-EGFP punctum formation in axon terminals of olfactory sensory neurons. (A) Representative VAMP2-EGFP signals in olfactory neuron axon terminals of embryos injected with Pomp-VG and control-MO (left), Pomp-VG and il1rapl1b-MO (middle) and Pomp-VG-Il1rapl1b and il1rapl1b-MO (right) at 60 hpf. The threshold images of VAMP2-EGFP signals are on the bottom. Arrowheads point axonal shafts. Bar = 5 μm. (B) The area of VAMP2-EGFP puncta in axon terminals of olfactory sensory neurons of embryos injected with Pomp-VG and control-MO (open bar), Pomp-VG and il1rapl1b-MO (filled bar) and Pomp-VG-Il1rapl1b and il1rapl1b-MO (gray bar) at 60 hpf. n = 56–60 for 31–33 embryos. One-way ANOVA: F = 33.9 and p < 0.001. All values represent mean ± SEM. * and ***, p < 0.05 and< 0.001, respectively. |
| Fish: | |
|---|---|
| Knockdown Reagent: | |
| Observed In: | |
| Stage: | Pec-fin |
Reprinted from Molecular and cellular neurosciences, 39(2), Yoshida, T., and Mishina, M., Zebrafish orthologue of mental retardation protein IL1RAPL1 regulates presynaptic differentiation, 218-228, Copyright (2008) with permission from Elsevier. Full text @ Mol. Cell Neurosci.
