Fig. 4
- ID
- ZDB-FIG-080529-73
- Publication
- Asaoka et al., 2002 - Pineal expression-promoting element (PIPE), a cis-acting element, directs pineal-specific gene expression in zebrafish
- Other Figures
- All Figure Page
- Back to All Figure Page

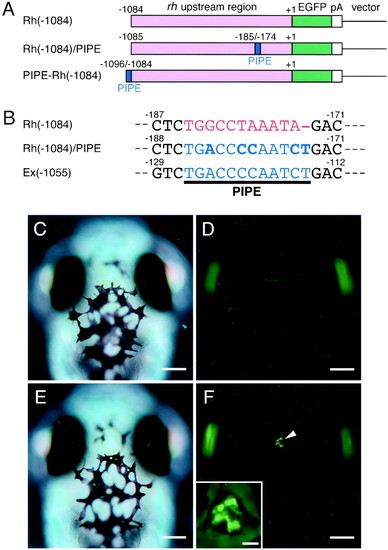

Ectopic gene expression in the pineal gland driven by the zebrafish rh chimeric promoter carrying the PIPE sequence. (A) Schematic representation of the constructs, Rh(–1084), Rh(–1084)/PIPE, and PIPE-Rh(–1084). (B) Comparison of PIPE and nearby sequence in Ex(–1055) with those in the corresponding region of Rh(–1084) or Rh(–1084)/PIPE. Bold characters in Rh(–1084)/PIPE represent five nucleotides (four substitutions and a single insertion) modified from Rh(–1084) to create an ectopic PIPE sequence. (C–F) Dorsal views (anterior up) of Rh(–1084) (C and D) and Rh(–1084)/PIPE (E and F) transgenic larvae at 7 dpf. Nomarski (C and E) and fluorescent (D and F) images were taken at the same focal plane without moving the larvae. EGFP fluorescence signals in the pineal gland of Rh(–1084)/PIPE transgenic larva are marked by an arrowhead (F). (F Inset) High-magnification image of the EGFP-positive pineal structure. The larvae in C–F were not treated with 1-phenyl-2-thiourea, so that strong EGFP fluorescence signals in the pigmented eyes (D and F) are only visible through the pupil. [Bars = 100 μm (C–F), 20 μm (F Inset).] |
