FIGURE

Fig. 1

ID
ZDB-FIG-071001-8
Publication
Machingo et al., 2006 - A beta1,4-galactosyltransferase is required for convergent extension movements in zebrafish
Other Figures
(all 7)
All Figure Page
Back to All Figure Page
Fig. 1

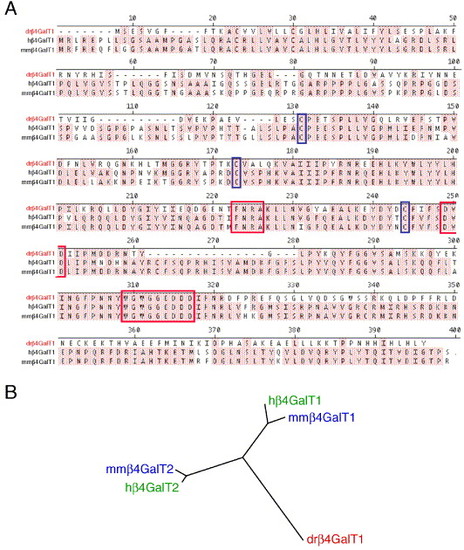

β4GalT1 is a zebrafish ortholog of mammalian β4GalT1. β4GalT1 was identified by in silico homology to human β4GalT1 and was cloned from a 48 h total RNA library. (A) Alignment of β4GalT1 from zebrafish (dr/red) human (h) and mouse (mm). Identical residues are shaded. Predicted catalytic residues are boxed in red, and cysteines used to align the sequences are boxed in blue. (B) Unrooted phylogenetic tree demonstrating the relationship between zebrafish β4GalT1 (red) and human (green) and mouse (blue) β4GalT1 and β4GalT2, suggesting an ancestral relationship.

Expression Data

Expression Detail
Antibody Labeling
Phenotype Data

Phenotype Detail
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 297(2), Machingo, Q.J., Fritz, A., and Shur, B.D., A beta1,4-galactosyltransferase is required for convergent extension movements in zebrafish, 471-482, Copyright (2006) with permission from Elsevier. Full text @ Dev. Biol.
