Fig. 2

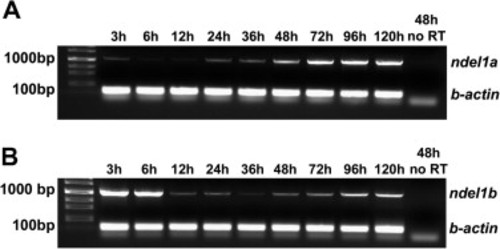

RT-PCR analysis of ndel1a and ndel1b expression across development. ndel1a (A) and ndel1b (B) were amplified from an oligo dT primed cDNA library produced from 1 μg of total RNA at multiple stages ranging from 3 to 120 hpf. β-Actin serves as an internal control. (A) ndel1a is maternally expressed but levels dramatically decreased by 6 hpf. From 24 to 120 hpf, ndel1a expression gradually increases. In contrast, ndel1b (B) is highly expressed at 3 hpf but expression wanes to a low point at 36 hpf. Expression then gradually escalates to the last time-point tested at 120 hpf. The temporal distinction in expression was further validated by the results of the in situ hybridizations that follow.

Expression Data

Genes:	ndel1a ndel1b
Fish:	WT
Anatomical Term:	whole organism
Stage Range:	1k-cell to Day 5
