Fig. 2

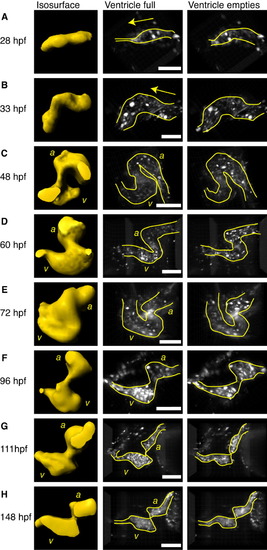

Dynamic three-dimensional (3D) reconstruction of the developing Tg(gata1:GFP) zebrafish heart at various stages. Left column corresponds to isosurface renderings obtained during mid-diastole. Central column: 3D volume renderings (maximum intensity projection) when the ventricle is full. Right column: 3D volume renderings when the ventricle empties. a, atrium; v, ventricle. Arrows indicate flow direction. Scale bars = 100 μm. |
