Fig. 3
- ID
- ZDB-FIG-051209-4
- Publication
- Cooper et al., 2005 - Zebrafish foggy/spt5 is required for migration of facial branchiomotor neurons but not for their survival
- Other Figures
- All Figure Page
- Back to All Figure Page

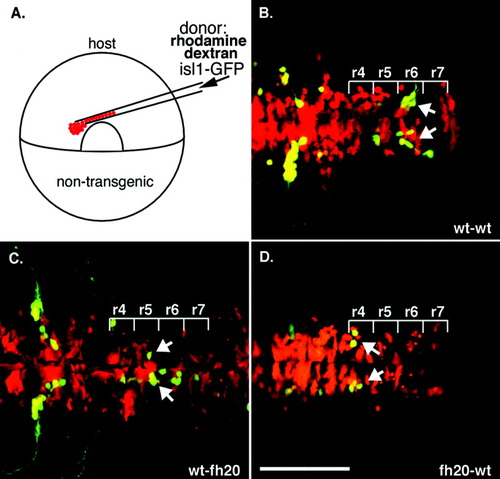

foggy/spt5 is required cell-autonomously for facial branchiomotor neuron migration. A: Genetic mosaics were generated by transplanting cells from rhodamine dextran-labeled isl1-green fluorescent protein (GFP) transgenic donor cells to unlabeled hosts at gastrula stage (6 hours postfertilization [hpf]), and confocal images were collected at 36 hpf. Donor-derived cells are red, and donor derived motor neurons, which express GFP, are yellow. B: Wild-type facial motor neurons (arrow) migrate posteriorly in a wild-type host; n = 14 of 14. C: Wild-type facial motor neurons (arrows) also migrate posteriorly from rhombomere 4 (r4) in a foggy/spt5fh20 mutant host, although to a lesser extent than in wild-type to wild-type control mosaics; n = 14 of 20. D: foggy/spt5fh20 facial motor neurons (arrow) fail to migrate from r4 in a wild-type host; n = 11 of 11. Scale bar = 100 μm. |
