FIGURE 1

Effect of C. officinalis extracts on the loss of DA neurons in the MPTP‐induced zebrafish model. (a) Control group, (b) MPTP group, (c) Positive group, (d) MPTP + 2.5 μg/mL extract, (e) MPTP + 5 μg/mL extract and (f) MPTP + 10 μg/mL extract. DA neurons are indicated by the red brackets; scale bar, 100 μm.

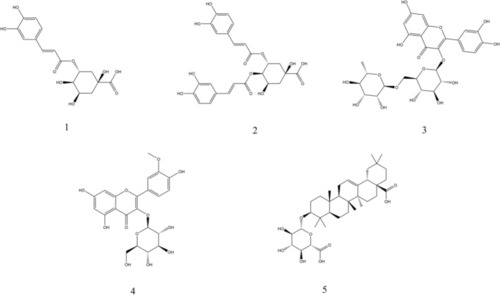

FIGURE 2

Compounds identified in C. officinalis flower extracts using LC‐Q/TOF‐MS/MS. (1) chlorogenic acid, (2) 3,4‐dicaffeoylquinic acid, (3) rutin, (4) isorhamnetin 3‐O‐glucoside and (5) calenduloside E.

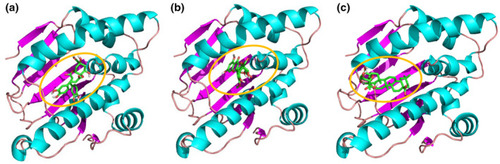

FIGURE 3

Molecular docking of (a) 3,4‐dicaffeoylquinic acid, (b) isorhamnetin 3‐O‐glucoside and (c) calenduloside E with Hsp90α protein.

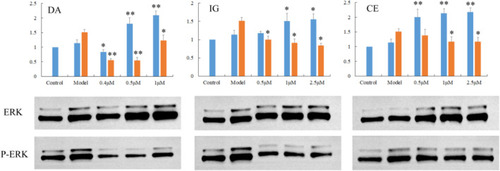

FIGURE 4

Total and phosphorylated ERK in the SH‐SY5Y cells. Cells without a drug treatment were used as the control group (relative ratio values were set to 1). *p < .05, **p < .01 versus the Model group.
FIGURE 5

Total and phosphorylated PI3K in the SH‐SY5Y cells. Cells without a drug treatment were used as the control group (relative ratio values were set to 1). *p < .05, **p < .01 versus the Model group.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Food Sci Nutr
