Fig S3

ID
ZDB-IMAGE-260821-24
Publication
Docampo-Seara et al., 2026 - The microglia-derived protein sema4ab attenuates regenerative neurogenesis after spinal cord injury in zebrafish
All Figures
Figures for Docampo-Seara et al., 2026
Figure Caption

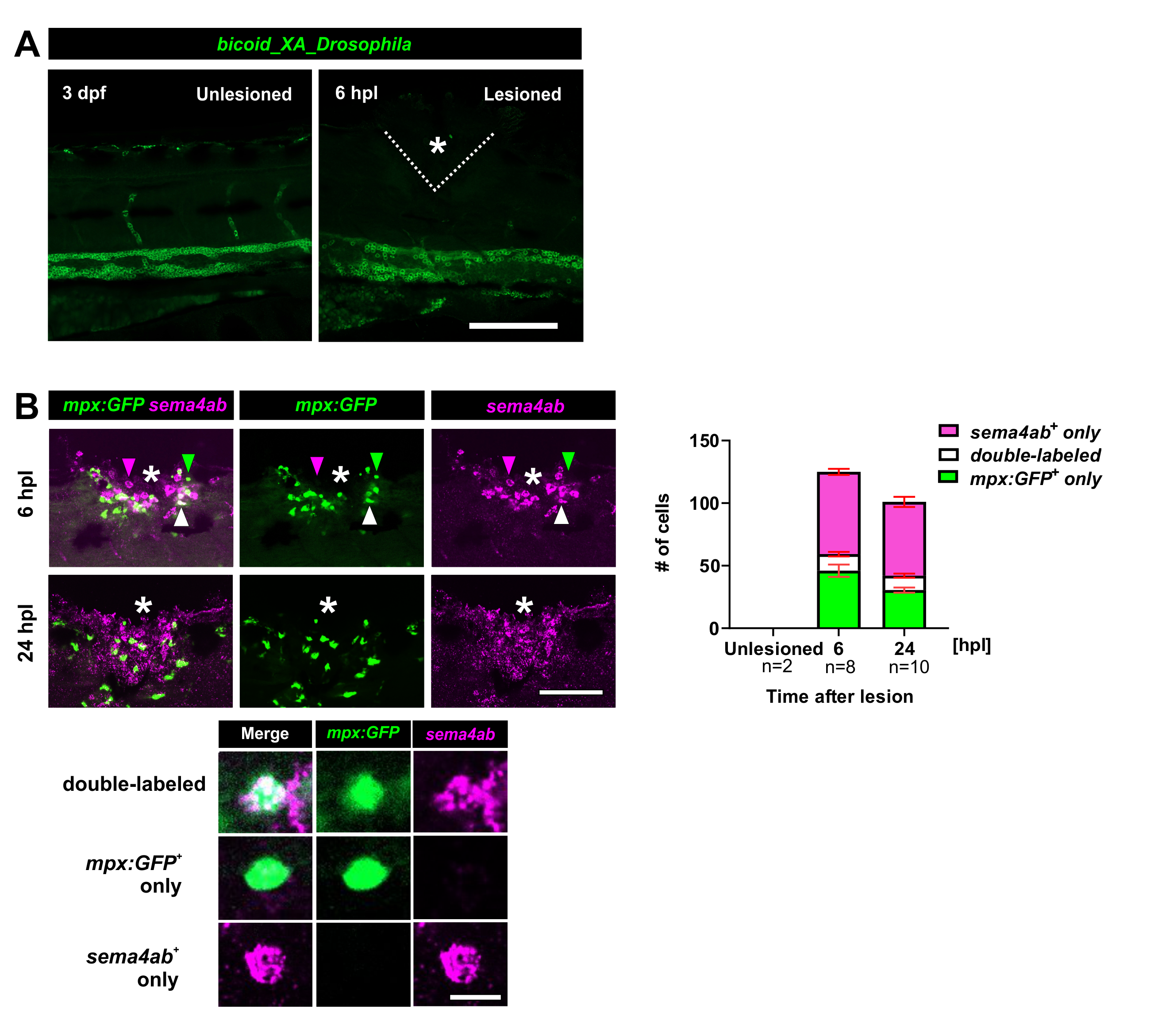

Fig S3 HCR-FISH method control and detection of sema4ab expression in neutrophils.
(A) HCR-FISH for the negative control gene (Drosophila BicoidXA) shows non-specific labeling in some blood vessels, but not in the spinal cord in uninjured and injured larvae. (B) Multiplexed HCR-FISH at 6 and 24 hpl shows that some sema4ab+ cells express mpx:GFP (white arrows: double-positive cells; green arrows: mpx:GFP+ only; magenta arrows: sema4ab+ only). Scale bars: 100 µm (A, B), 10 µm (inset). Data files for graphs available in S3 Data.

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ PLoS Biol.
