Fig. 3

ID

ZDB-IMAGE-260601-3

Antibodies

Ab15-tuba

Publication

Bertrand et al., 2026 - ⍺TAT1-dependent microtubule acetylation is required for touch sensation in zebrafish but not for cilia-driven morphogenesis

All Figures

Figures for Bertrand et al., 2026


Figure Caption

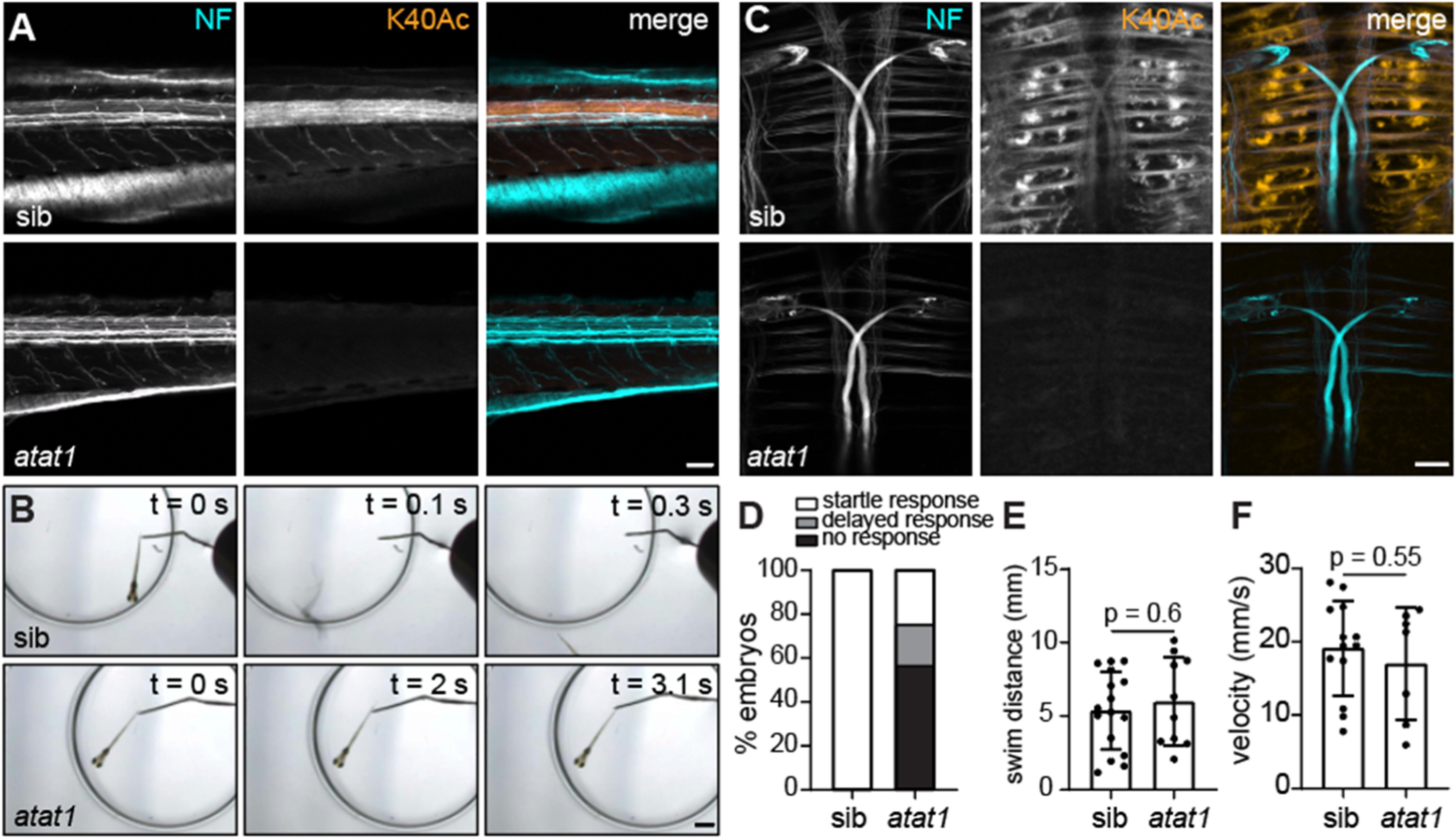

Fig. 3 ⍺TAT1 is required for neuronal ⍺-tub^K40Ac and normal touch-evoked behavior. (A) Immunofluorescence of zebrafish trunks at 6 dpf stained for ⍺-tub^K40Ac and neurofilament (NF). Scale bar, 50 μm. (B) Still images from touch-evoked escape assays in 6 dpf wild-type siblings and atat1 mutants. t = 0s marks the first tail stimulus; subsequent stimuli in atat1 mutants occurred at 2.0 s and 3.1 s. Scale bar, 1 mm. (C) Immunofluorescence of the Mauthner circuit at 6 dpf. Laterally projecting cranial nerves can be observed flanking Mauthner axons. Scale bar, 20 μm. (D) Quantification of touch responsiveness. A significantly greater proportion of atat1 mutants failed to respond compared with wild-type siblings (n = 16 per group; P = 6.8 × 10⁻⁵, chi-square test). (E) Swim distance following touch-evoked responses. Dots represent individual fish and error bars show standard deviation. P = 0.6 (unpaired t-test). (F) Swim velocity following touch-evoked responses. Dots represent individual fish and error bars show standard deviation. P = 0.55 (unpaired t-test).

Figure Data

Expression / Labeling details

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image.

Reprinted from Developmental Biology, 535, Bertrand, S.G., Grimes, D.T., ⍺TAT1-dependent microtubule acetylation is required for touch sensation in zebrafish but not for cilia-driven morphogenesis, 124-132, Copyright (2026) with permission from Elsevier. Full text @ Dev. Biol.
