Fig. 4

ID: ZDB-IMAGE-260529-64
Publication: Bai et al., 2026 - Macrophages warrant Mauthner cell axon regrowth by preventing late-stage hyperglycemia in zebrafish
All Figures: Figures for Bai et al., 2026


Figure Caption

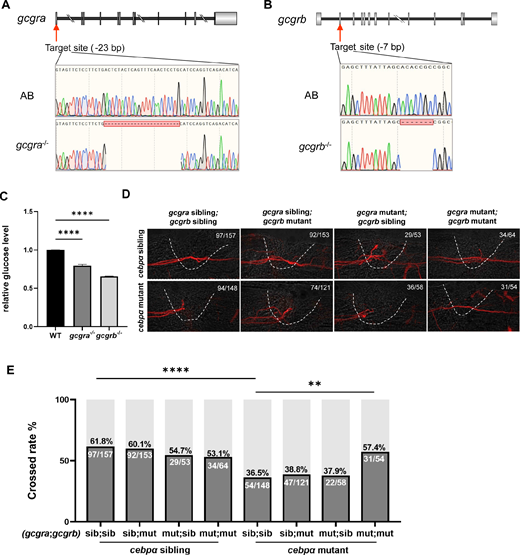

Fig. 4

Gcgra and gcgrb double mutation rescue regeneration defects in cebpα mutant. (A,B) Schematic and sequencing results of the gcgra (A) and gcgrb (B) mutants. The silver boxes represent exons. (C) Glucose level of gcgra and gcgrb mutants relative to wild-type at 4 dpf. Error bars represent means ± s.d. Data were analysed by one-way ANOVA. Data are representative of three independent experiments with similar results. (D,E) Representative images (D) and quantification (E) of the proportion of larvae with axons successfully crossing the injury site in gcgra; gcgrb; cebpα triple mutant at 48 hpi. Data were analysed by the chi-square test. Scale bar = 50 µm. White dashed lines outline the analysed region. ****p < 0.0001; **p < 0.01.
