ZFIN Image: Li et al., 2025, Figure 7


Figure Caption

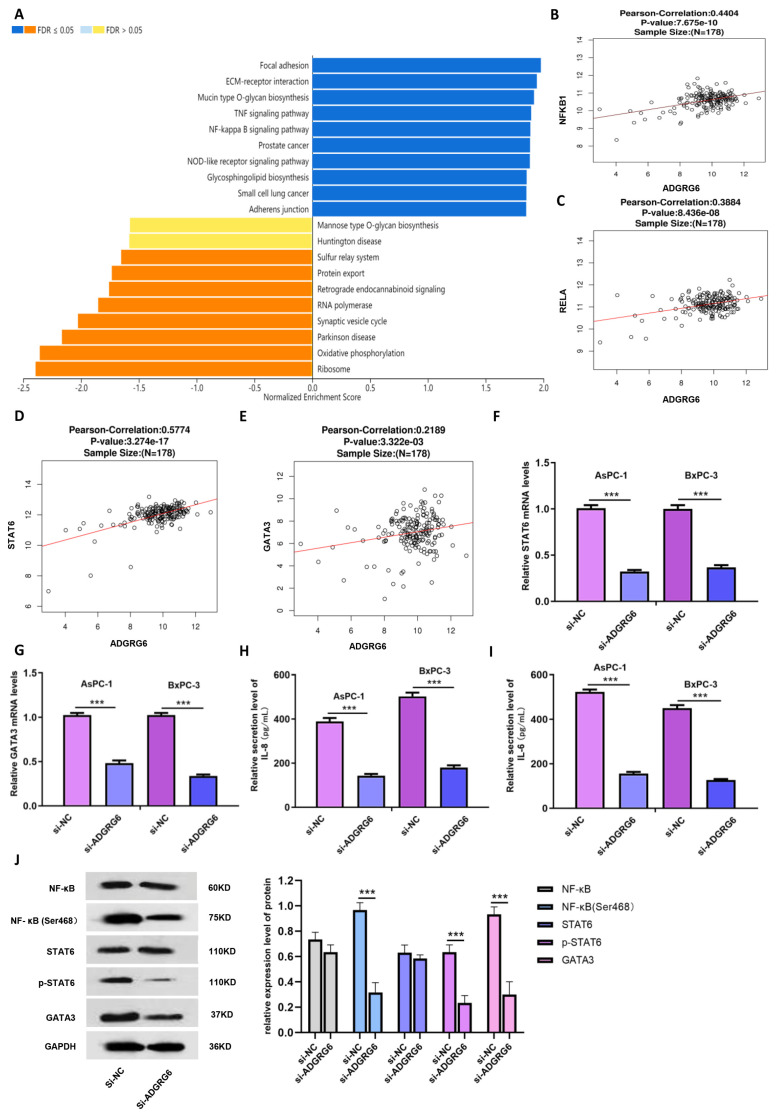

Figure 7

Regulatory Role of ADGRG6 in the NF-κB→STAT6→GATA3 Signaling Axis. (A) KEGG pathway analysis of the gene set co-expressed with ADGRG6 using the LinkInterpreter module; (B–E) Pearson correlation analysis between ADGRG6 and key genes of the signaling axis (NFKB1, RELA, STAT6, and GATA3) in 178 clinical samples. Values represent Pearson correlation coefficients and corresponding p-values, n = 178; (F,G) Relative expression levels of STAT6 and GATA3 genes in the signaling axis in AsPC-1 and BxPC-3 cells after ADGRG6 knockdown detected by RT-qPCR. Data are presented as mean ± standard deviation; (H,I) Secretion levels of secretory cytokines IL-6 and IL-8 in AsPC-1 and BxPC-3 cells detected by ELISA; (J) Expression and activity of key proteins in the signaling axis after ADGRG6 knockdown detected by Western blot, *** p < 0.001.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Curr. Iss. Mol. Biol.
