ZFIN Image: Eroglu et al., 2025, Figure 3


Figure Caption

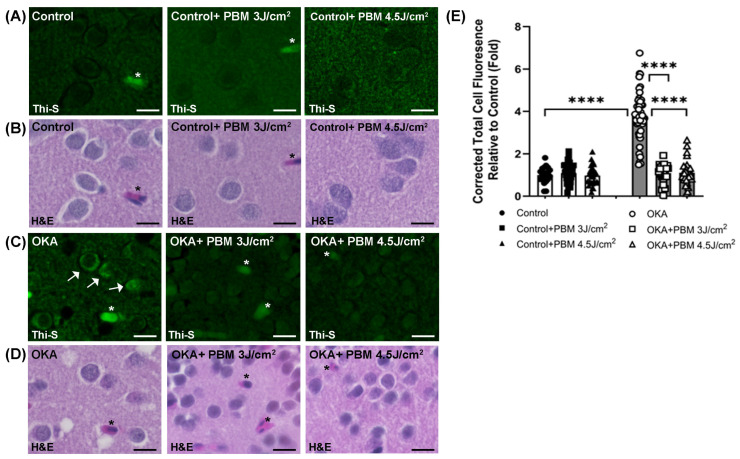

Figure 3

Thioflavin-S (Thi-S) staining of tau aggregates/neurofibrillary tangles in zebrafish brain sections. Shown are representative Thi-S stained (green) brain sections of control (A) and OKA-treated zebrafish (C), as well as their corresponding H&E stainings (B) and (D), respectively, where some intracellular tau aggregates/tangles and blood vessels are pointed out by arrows and asterisks, respectively. Scale bars: 10 μm. (E) The fold change of the corrected total cell fluorescence (CTCF) for each group relative to the untreated controls after quantification of Thioflavin-S fluorescence intensity by using ImageJ. Quantified only intracellular tau aggregates/tangles. The bar graphs show means ± s.e.m while open and solid signs display individual data points for the indicated groups. **** p < 0.0001.
