FIGURE 4

ID: ZDB-IMAGE-251115-149
Source: Figures for Shinkai et al., 2025


Figure Caption

FIGURE 4

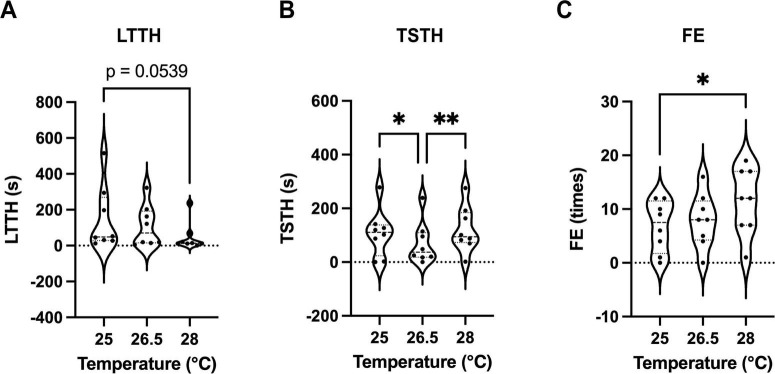

Effects of subtle temperature variations on outcomes of the NTT. (A–C) Values of latency to enter the top half (LTTH) (A), time spent in the top half (TSTH) (B), and frequency of entries (FE) (C) during NTT at water temperatures of 25, 26.5, and 28 °C. Considering the variability, LTTH at 28 °C was significantly reduced compared with that at 25 °C (p < 0.05, F-test). The same individuals (n = 8; 4 males and 4 females) were used across all conditions. *p < 0.05, **p < 0.01.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Front. Behav. Neurosci.
