Figure 6

ID: ZDB-IMAGE-251023-162
Publication: Hanot et al., 2025 - Ezh2 Loss-of-Function Alters Zebrafish Cerebellum Development
All Figures: Figures for Hanot et al., 2025


Figure Caption

Figure 6

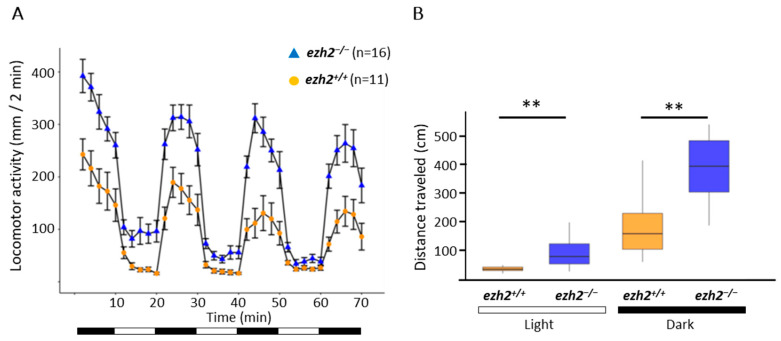

Comparison of the locomotor activities between wild-type and ezh2^−/− mutants at 5 dpf: (A) distance traveled throughout a 70 min session for wild-type (yellow, n = 11) and ezh2^−/− mutant (blue, n = 16). Data are presented as mean ± SD of the distance moved (in mm) in 2 min intervals. Black and white bars at the bottom indicate dark and light conditions, respectively; and (B) cumulative distance travelled for each wild-type (yellow) and mutant (blue) larvae during the light (left) and dark (right) periods. Statistical analysis was performed using a Kruskal–Wallis test followed by Dunn’s post hoc test. **, p <0.05.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Int. J. Mol. Sci.
