ZFIN Image: Ameen et al., 2025, Figure 2


Figure Caption

Figure 2

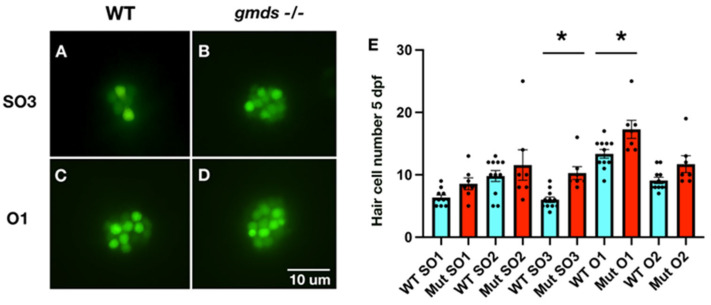

Increased neuromast hair cell number in gmds^−/− mutants under homeostatic conditions. The SO3 and O1 neuromasts show a statistically significant increase in hair cell number at 5 dpf in gmds^−/− mutants when compared to control siblings, as evidenced by YO-PRO-1 staining (A–D). While the other quantified neuromasts (SO1, SO2, O2) show a trend of increased hair cell number under homeostatic conditions, these data were not statistically significant (E). Data from two experiments (WT n = 11, Mut n = 7). Data presented as mean ± SEM, significance testing using a one-factor ANOVA with Sidak’s multiple comparisons test * p < 0.05.

Figure Data

Phenotype details
