ZFIN Image: Wu et al., 2025, Figure 1


Figure Caption

Figure 1

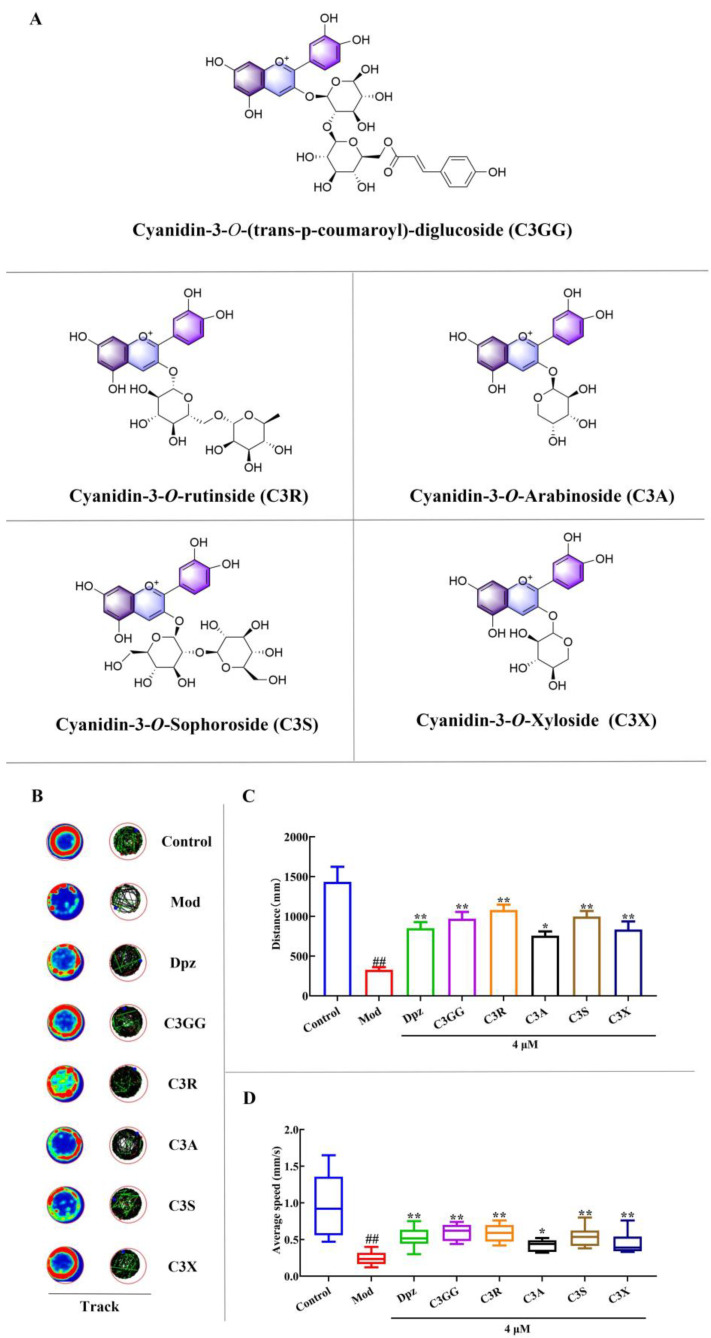

The effects of cyanidin derivatives on locomotor impairments of AD zebrafish. (A) The chemical structure and abbreviations of cyanidin derivatives. (B) A representative image of the larvae movement track from each group. In the heat map, the colors red, green, and blue are used to represent fast, medium-speed, and slow actions, respectively. (C) Distance travelled in mm. (D) Average speed in mm/s. ## p < 0.01 vs. Con group, * p < 0.05 and ** p < 0.01 vs. model group. Group notes: Control: control group, Mod: model group (AlCl₃), Dpz: donepezil + AlCl₃ group, C3GG: cyanidin-3-O-(trans-p-coumaroyl)-diglycoside + AlCl₃ group, C3R: cyanidin-3-O-rutinoside + AlCl₃ group, C3A: cyanidin-3-O-arabinoside + AlCl₃ group, C3S: cyanidin-3-O-sophoroside, + AlCl₃ group, C3X: cyanidin-3-O-xyloside+ AlCl₃ group.

Figure Data

Phenotype details

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Molecules
