ZFIN Image: Rombouts et al., 2025, Fig. 1


Figure Caption

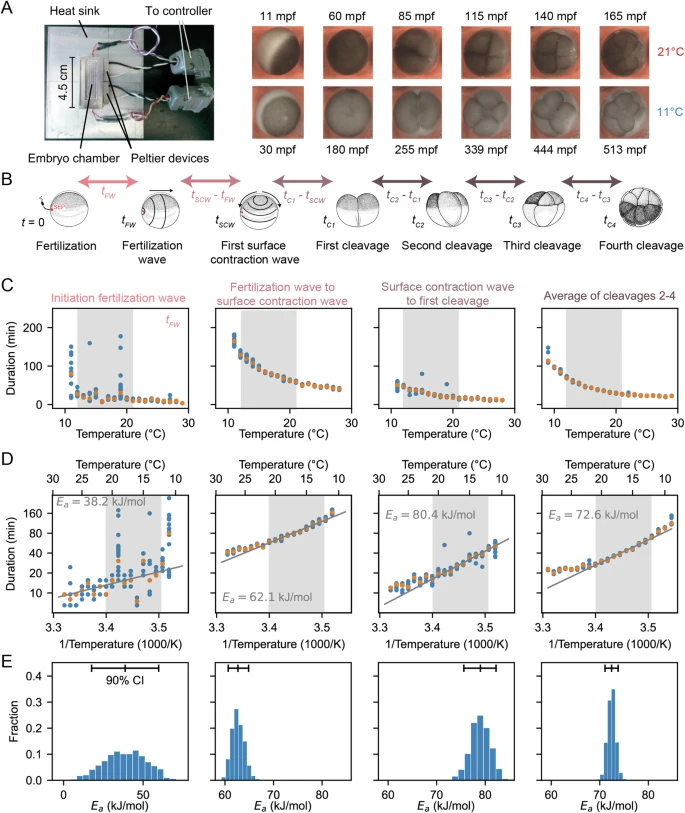

Fig. 1 Cell division timing in early Xenopus laevis embryos scales approximately Arrhenius over a wide range of temperatures. A Xenopus laevis embryonic development was imaged in a temperature-controlled chamber introduced in ref. 34. The time unit mpf is minutes post-fertilization. B Different early developmental events were visually identified. SEP denotes the sperm entry point. Adapted from ref. 100. C Duration of several early developmental periods in function of temperature in the range [ C, C]. D An Arrhenius fit is shown for the values between 12 °C and 21 °C, with the apparent activation energy indicated. E Bootstrapping provides a probability distribution for the apparent activation energies. Histograms from 1000 bootstrap samples. The mean and 90% confidence interval (CI) are also indicated. Source data are provided as a Source Data file98.

Acknowledgments

This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Nat. Commun.
