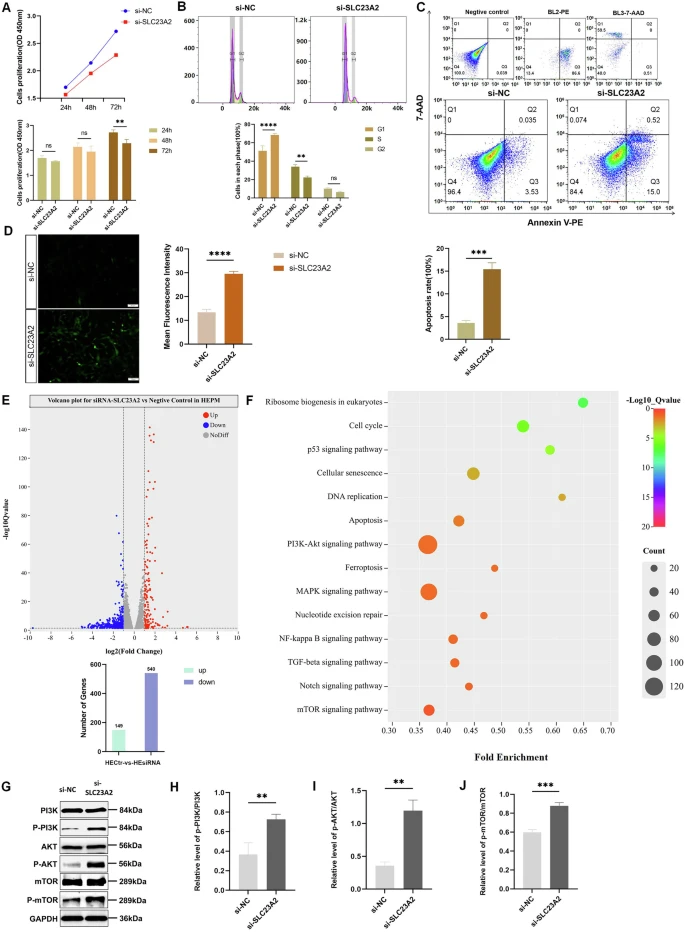

Fig. 3 Changes of cell biology and ROS in HEPM after SLC23A2 knockdown. A Cell proliferation after knockdown of SLC23A2. B Cell cycle after knockdown of SLC23A2. C Cell apoptosis after knockdown of SLC23A2. D ROS level after knockdown of SLC23A2. E Volcano plot for differential expression gene (DEG). F GO analysis for DEGs. G–J Western Blot for proteins in PI3K-AKT-mTOR signaling pathway. Error bars represent SD. n = 3; ns, P > 0.05; *,P < 0.05; **,P < 0.01; ***,P < 0.001; ****,P < 0.0001
