ZFIN Image: Peloggia et al., 2025, Fig. 6.


Figure Caption

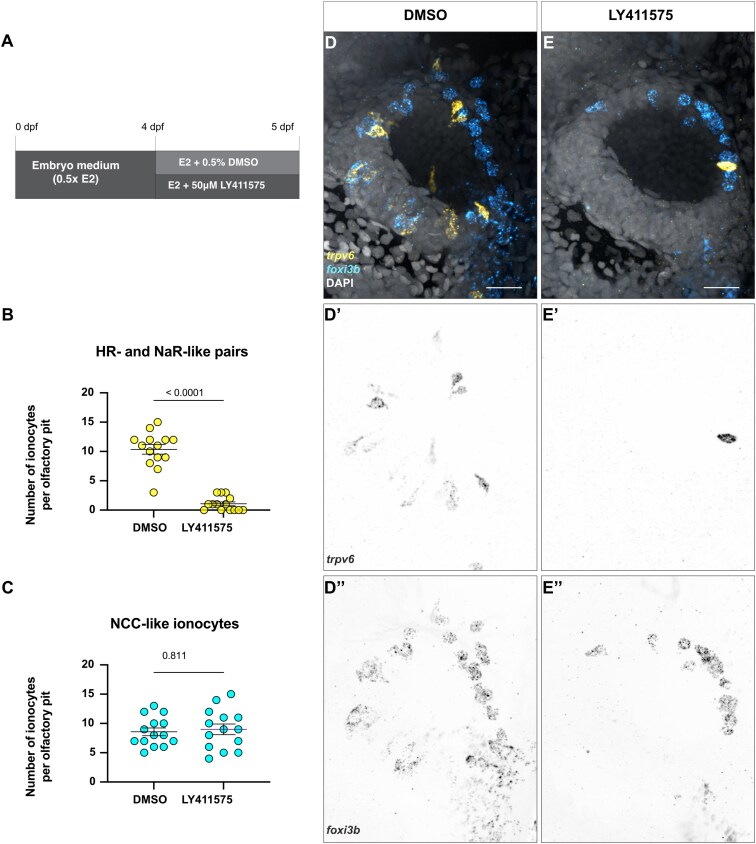

Fig. 6.

Notch signaling is required for paired ionocyte survival, but does not affect NCC-like ionocyte number. (A) Schematic of experimental design. (B) Number of NaR- and HR-like ionocyte pairs in DMSO controls and treated with the Notch inhibitor LY411575. Mann–Whitney test (P < 0.0001). (C) Number of NCC-like ionocytes in DMSO controls and treated with the Notch inhibitor LY411575. Mann-Whitney test (P = 0.811). (D–E’’) Representative maximum intensity projection confocal images of HCR RNA-FISH for trpv6 (yellow) and foxi3b (cyan) with DAPI stain (gray) in DMSO-treated (D–D’’) and LY411575-treated (E–E’’) olfactory pits. N = 14 olfactory pits per condition. Scale bars: 20 µm.
