Fig 9 pomp and psmd6 mutants exhibit reduced outflow tracts.

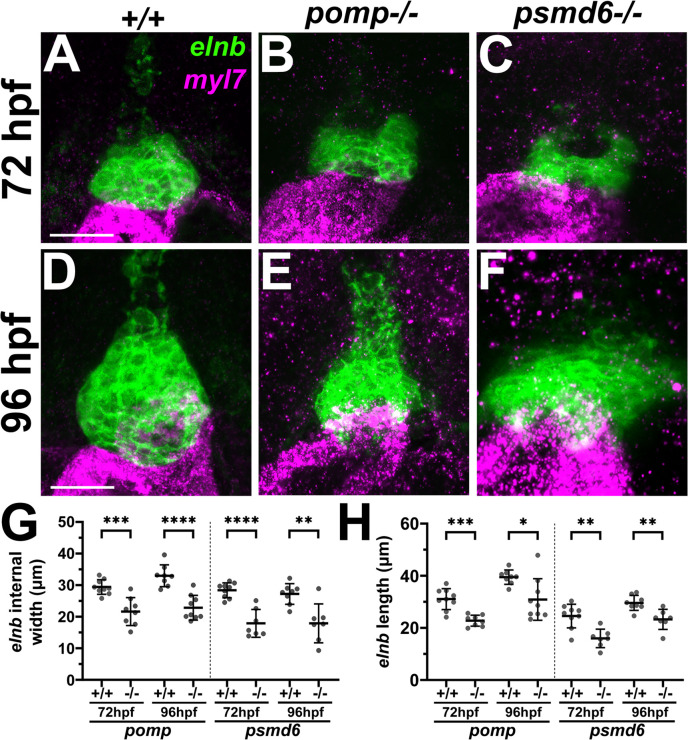

A.-F. Ventral views of outflow tracts, labeled with elnb (green), in (A-C) 72 hpf larvae and (D-F) 96 hpf larvae. Myocardium is labeled with myl7 (purple). G.-H. Graphs showing (G) the internal width of the elnb domain, measured at the maximum width position, and (H) the length of the elnb domain. Each dot represents an individual heart/larva. Bars represent mean +/- SD. All animals were genotyped. N = 7-9 per condition. * P < 0.05; ** P < 0.01; *** P < 0.001; **** P < 0.0001. Scale bar = 25 μm.
