Figure Caption

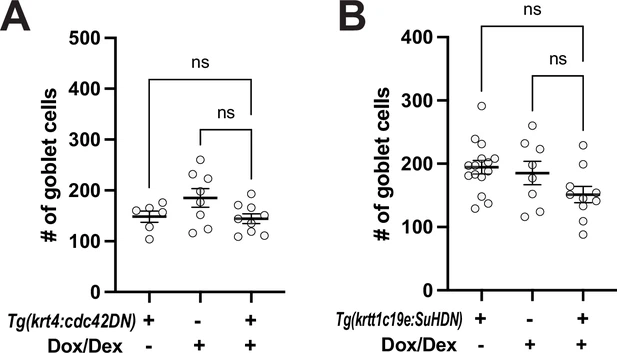

Fig. 3 - Supplemental 2 Goblet cell counts in the zebrafish epidermis. (A) Quantification of goblet cell numbers revealed no significant difference between two controls and experimental Tg(krt4:TetGBDTRE-v2a-cdc42DN) zebrafish (F2,20 = 2.763, p=0.0872, N=23 larvae total). (B) Quantification of goblet cell numbers showed no significant difference between two controls and experimental Tg(krtt1c19e:TetGBDTRE-v2a-SuHDN) zebrafish (F2, 30 = 3.040, p=0.0628, N=33 larvae total). Statistical significances were assessed by One-way ANOVA followed by Tukey’s HSD post hoc test.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Elife
