Figure Caption

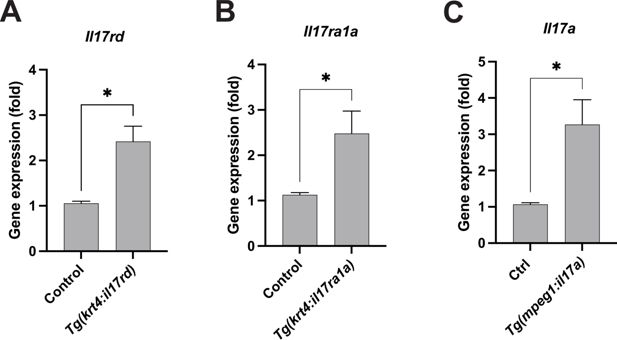

Fig. 5 - Supplemental 1 Overexpression of il17rd, il17ra1a, or il17a in transgenic animals. (A) Quantitative PCR reveals that il17rd mRNA is overexpressed in Tg(krt4:il17rd) (p=0.0159, N=3 independent experiments). (B) Quantitative PCR shows il17ra1a mRNA is overexpressed in Tg(krt4:il17ra1a) (p=0.0351, N=4 independent experiments). (C) Quantitative PCR demonstrates that il17a mRNA is overexpressed in the skin of Tg(mpeg1:il17a) animals (p=0.0183, N=4 independent experiments). Statistical significances were assessed by Student t test. Error bars indicate mean ± SEM.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Elife
