Fig. 7 - Supplemental 1

ID
ZDB-IMAGE-250714-20
Source
Figures for Ning et al., 2025
Figure Caption

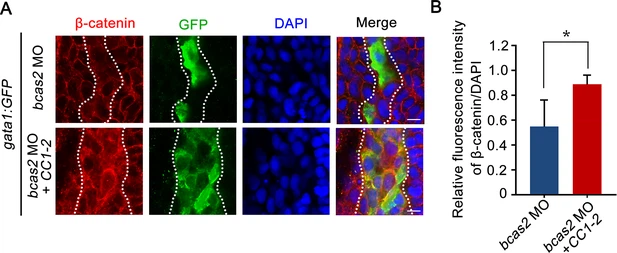

Fig. 7 - Supplemental 1 Overexpression of the CC domains of BCAS2 restores nuclear β-catenin accumulation in bcas2 morphants. Immunofluorescence staining of β-catenin in Tg(gata1:GFP) embryos at 16 hpf. The embryos were injected with 8 ng bcas2 MO and 300 pg of BCAS2 CC1-2 mRNA at the one-cell stage. The dotted lines show the GFP-positive hematopoietic progenitor cells. The relative fluorescence of β-catenin was quantified in (B) (n=6). *p<0.05 (Student’s t-test). Scale bars, 10 μm (A).

Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and ZFIN has permission only to display this image to its users. Additional permissions should be obtained from the applicable author or publisher of the image. Full text @ Elife
