Figure Caption

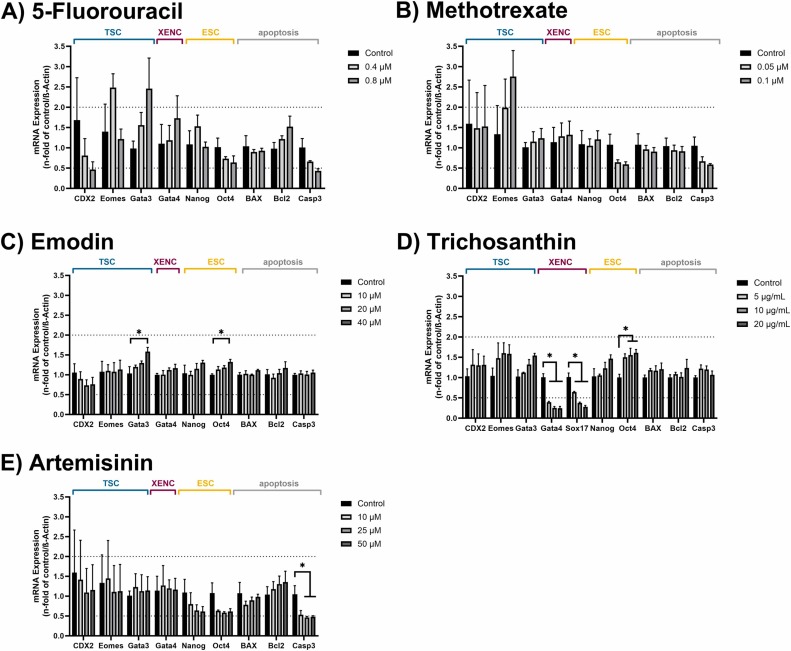

Fig. 5 Analysis of mRNA expression in 3D embryoids after 48 h treatment in vitro. DIV2 embryoids were exposed for 48 h (until DIV4) with different concentration of 5-fluorouracil (A), methotrexate (B), emodin (C), trichosanthin (D), or artemisinin (E). Results represented as mean + SEM values of the mRNA expression (n-fold of control) normalized to β-actin for three independent experiments. Statistical analysis performed with one-way ANOVA followed by Dunnett post hoc comparison test with a significance threshold established at p < 0.05 (*).
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Reprinted from Reproductive toxicology (Elmsford, N.Y.), , Wieloch, J., Blanco, J., Zordick, C., Ohnesorge, N., Schneider, M.R., Barenys, M., Knöspel, F., In vitro embryolethality testing during the peri-implantation stage using 3D mouse embryoids: comparison with 2D mouse cell cultures and the zebrafish embryo model, 108941108941, Copyright (2025) with permission from Elsevier. Full text @ Reprod. Toxicol.
