Fig. 4

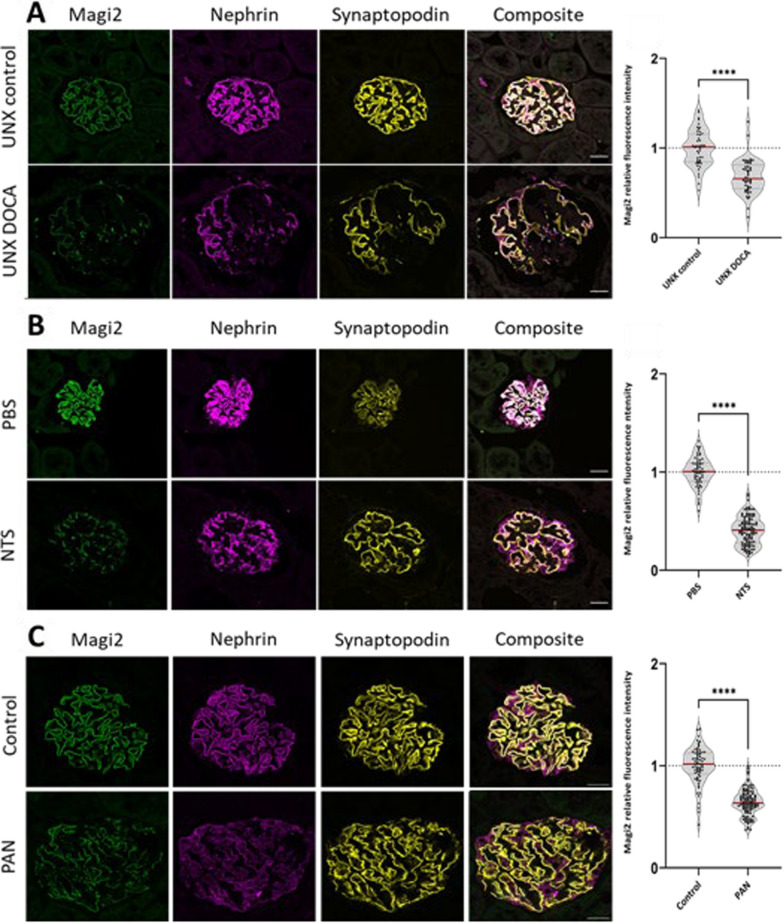

Magi2 protein expression was downregulated in three experimental models of glomerular injury: the murine uninephrectomy DOCA-salt hypertension model (A), the murine nephrotoxic serum (NTS) nephritis model (B), and the puromycin aminonucleoside (PAN) nephropathy rat model (C). All scale bars represent 20 µm. For the DOCA-salt model, group sizes were control n = 5, DOCA/UNX n = 5; for the NTS model, control n = 4, NTS n = 7; and for the PAN model, control n = 5, PAN n = 7. Normality was checked using Kolmogorov Smirnov Test. A one-way t-tests (with Welch’s correction was applied. A p-value < 0.05 was considered statistically significant
