ZFIN Image: Clarke et al., 2025, Fig. 4


Figure Caption

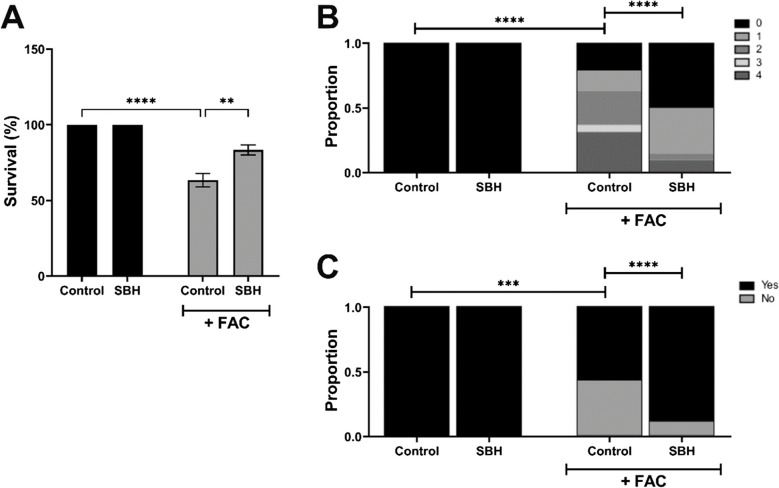

Fig. 4

SBH significantly protects against FAC-induced toxicity in zebrafish larvae in vivo. Zebrafish larvae (4 dpf) were injected i.v. with SBH (10 µM) or vehicle, in the presence and absence of bath-applied FAC (600 µM; 24 h). Larvae were assessed for survival (A), incidence of non-lethal malformations (B) and touch startle response (C). Data presented as mean ± SEM (A) or as a proportion of total larvae (B, C). Statistical comparisons were made by two-way ANOVA or Chi-squared analysis. **p < 0.01, ***p < 0.001, ****p < 0.0001. n = 45 larvae from 3 independent experiments
