Figure 4

Figure 4

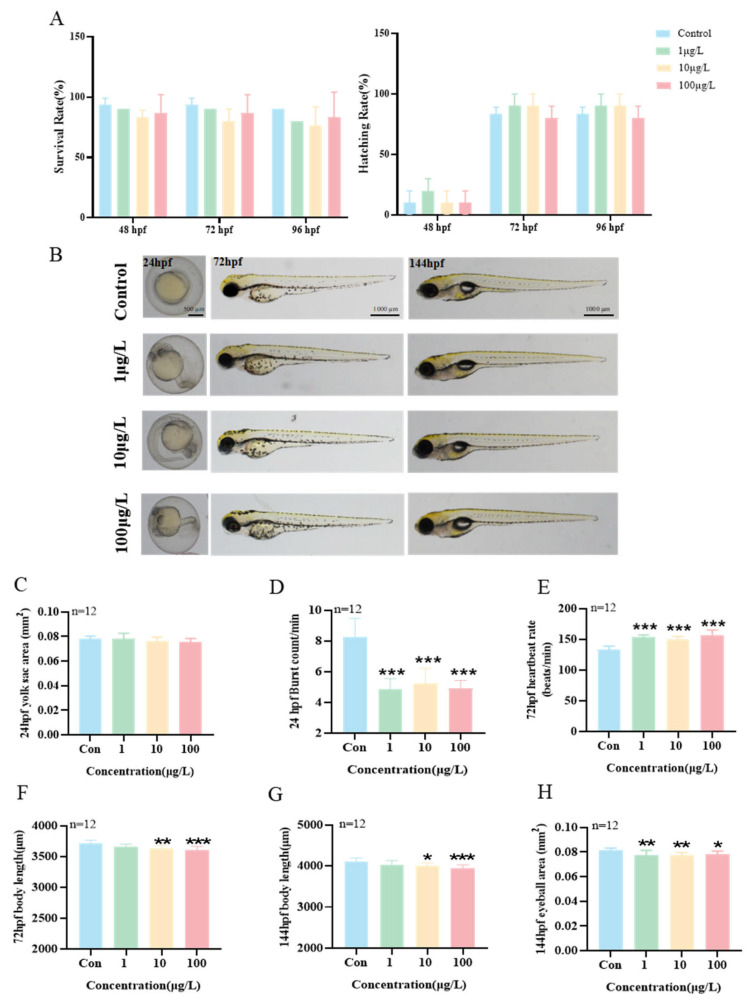

Effects of exposure to 3-isopropylphenol on the early development of zebrafish larvae. (A) Survival rate and hatching rate of zebrafish larvae after exposure until 96 hpf. (B) Typical images of the early development of zebrafish larvae. (C) Yolk sac area and (D) embryonic movement of zebrafish embryos after exposure until 24 hpf. (E) Heart rate and (F) body length of zebrafish larvae after exposure until 72 hpf. (G) Body length and (H) eye circumference area of zebrafish larvae after exposure until 144 hpf. The data are presented as the mean ± standard deviation of three independent experiments (n = 12). p values: p < 0.001 (***), p < 0.01 (**), and p < 0.05 (*).
