Figure Caption

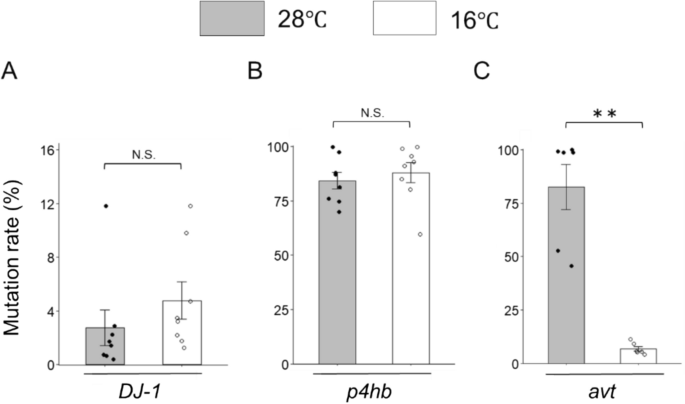

Fig. 1 The effect of low-temperature incubation on the on-target mutation rate. After the introduction of RGEN, embryos were cultured at 28 °C or 16 °C until Stage 25. Amplicon sequencing was performed for each region, and the mutation rate was calculated. A DJ-1 (n = 8) B p4hb (n = 8) C avt (n = 6). While no significant difference in mutation rate was observed between temperatures for DJ-1 and p4hb, the mutation rate for avt was significantly reduced at 16 °C compared to 28 °C. N.S.: no significant difference, **: p < 0.01, Columns and error bars represent mean ± SE
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Transgenic. Res.
