Figure Caption

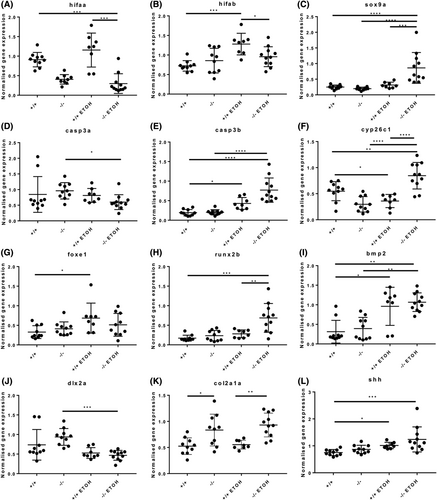

Fig. 6 Foxe1-ethanol interactions cause differential gene expression of genes involved in cell death, hypoxia, and ethanol clearance. Relative gene expression of hifaa (A), hifab (B), sox9a (C), casp3a (D), casp3b (E), cyp26c1 (F), foxe1 (G), runx2b (H), bmp2 (I), dlx2a (J), col2a1a (K), and shh (L) in foxe1 mutants and wild types exposed to 0% and 1% ethanol. Data were analyzed with a two-way ANOVA on raw or transformed data.
Acknowledgments
This image is the copyrighted work of the attributed author or publisher, and
ZFIN has permission only to display this image to its users.
Additional permissions should be obtained from the applicable author or publisher of the image.
Full text @ Dev. Dyn.
