ZFIN Image: Zhou et al., 2025, Figure 3


Figure Caption

Figure 3

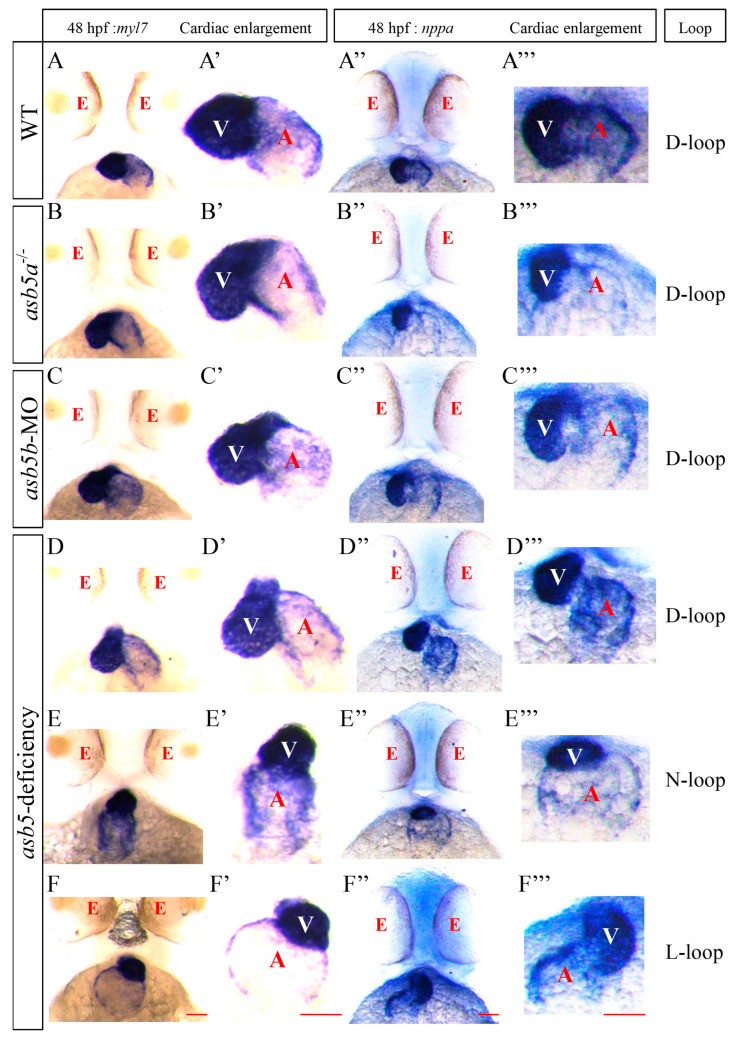

WISH analysis of heart looping at 48 hpf in the asb5-deficiency group, utilizing myl7 and nppa probes. (A–F) Schematic diagrams of heart positions marked with myl7 probes in different groups at 48 hpf. (A′–F′) Enlarged views of these heart positions as indicated by myl7 probes. (A″–F″) Schematic diagrams of heart positions marked with nppa probes in various groups at 48 hpf. (A′′′–F′′′) present enlarged views of these positions as indicated by nppa probes. Scale bar = 100 µm (belly up view). red E: eyes; white V: ventricle; red A: atrium; D-loop: dextral looping; N-loop: no looping; L-loop: levo-looping.
