Fig. 3

ID
ZDB-IMAGE-250225-40
Source
Figures for Guo et al., 2025
Figure Caption

Fig. 3 FBG force sensor calibration.

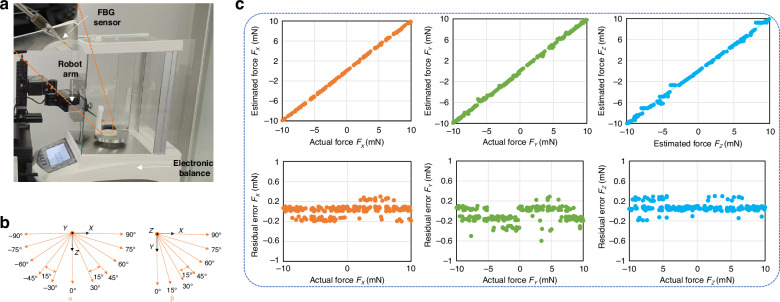

a Microinjector with a 3D force sensor calibration platform. b View of variation of pitch angle α and β. c Diagram of Linear fitting and residual for three-dimensional force. The actual force and estimated force are fitted linearly, and the error between the actual force and estimated force is calculated. The fitting slope between the actual force and the calculated force FX, FY, and FZ are close to 1
